STANDARDS: ASTM D1194, 1195, 1196, BS 1377:9
This test is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road
subgrades, and airport and highway pavements.
A wide range of models are available.

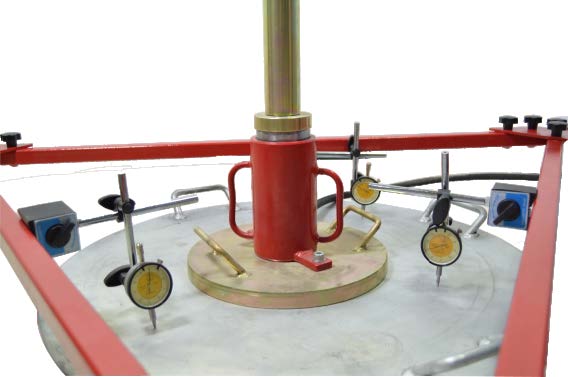

300 kN capacity Plate Bearing Test Set consists of a 300 kN capacity Piston Assembly and Hydraulic Hand Pump, Analog Manometer, 2.4 m long Datum Bar, 3 pcs. 30 mm travel x 0.01 mm Analog Dial Gauges with Dial Gauge Holders, Ø12”(305 mm) and Ø18”(457 mm) Loading Plates.
500 kN capacity Plate Bearing Test Set Set consists of a 500 kN capacity Piston Assembly and Hydraulic Hand Pump, Analog Manometer, 2.4 m long Datum Bar, 3 pcs. 30 mm travel x 0.01 mm Analog Dial Gauges with Dial Gauge Holders, Ø24”(610 mm) and Ø30”(762 mm) Loading Plates.
1000 kN capacity Plate Bearing Test Set Set consists of a 1000 kN capacity Piston Assembly and Hydraulic Hand Pump, Analog Manometer, 2.4 m long Datum Bar, 3 pcs. 30 mm travel x 0.01 mm Analog Dial Gauges with Dial Gauge Holders, Ø24”(610 mm) and Ø30”(762 mm) Loading Plates.

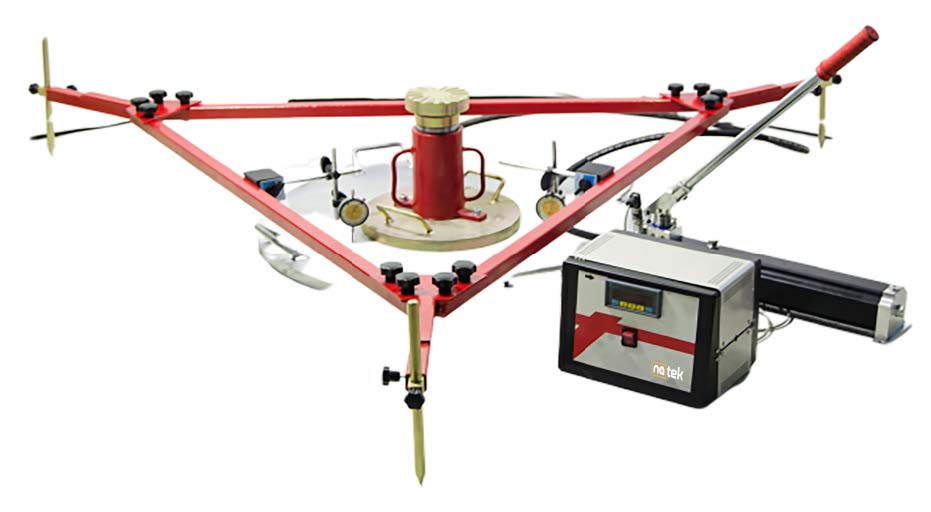

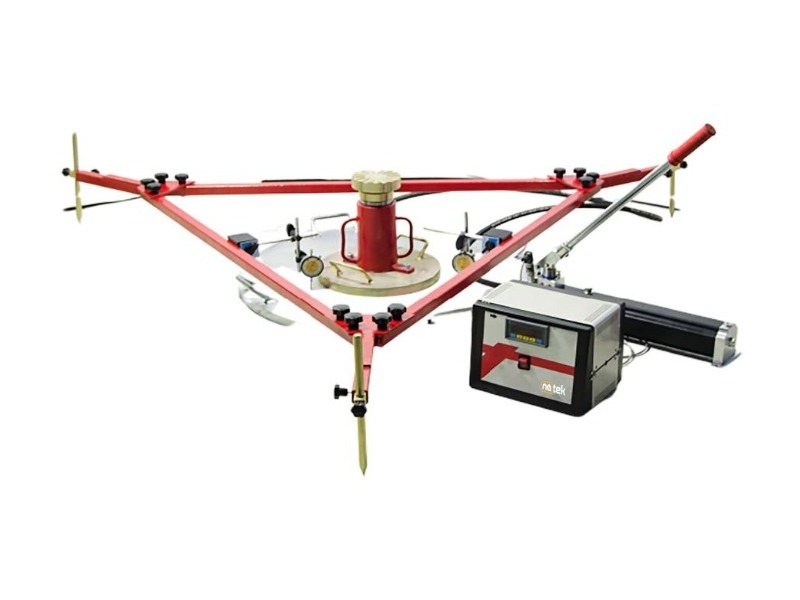

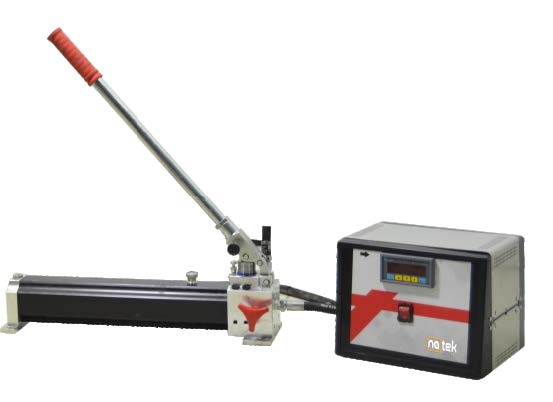

300 kN capacity Plate Bearing Test Set Set consists of a 300 kN capacity Piston Assembly and Hydraulic Hand Pump, Pressure Transducer, Battery operated digital readout unit, 2.4 m long Datum Bar, 3 pcs. 30 mm travel x 0.01 mm Analog Dial Gauges with Dial Gauge Holders, Ø12”(305 mm) and Ø18”(457 mm) Loading Plates.
500 kN capacity Plate Bearing Test Set Set consists of a 500 kN capacity Piston Assembly and Hydraulic Hand Pump, Pressure Transducer, Battery operated digital readout unit, 2.4 m long Datum Bar, 3 pcs. 30 mm travel x 0.01 mm Analog Dial Gauges with Dial Gauge Holders, Ø24”(610 mm) and Ø30”(762 mm) Loading Plates.
Plate Bearng Test Set Set consistsof a 1000 kN capacty Piston Assembily and HydraulicHand Pump,
Pressure Transducer, Battery operated digitalreadout unt, 2.4 m long Datum Bar, 3 pcs. 30 mm travel x 0.01 mm Analog Dial Gauges with Dial Gauge Holders, Ø24”(610 mm) and Ø30”(762 mm) Loading Plates.
